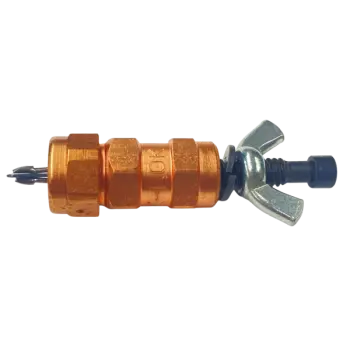

KWIK-LOK - KWNS-type Fastener, 1/8" diameter

Part Number: KWNS-FW-1/8

The KWIK-LOK short grip wing nut fastener (KWNS) is for low production rates and high-clamping force applications. Because this fastener is manually controlled, the clamping force can range from zero to 300 lbs. The KWNS-FW-1/8 is free wheeling and ideal for 1/8" diameter holes.
  • KWNS-FW-1-8
Click image to enlarge
0
Quantity:

KWNS-FW-1/8 Specifications

  • Grip Range: 0-5/16
  • Diameter: 3/8 inches
  • Drill Size: #30 inches
  • Color Code: Copper
  • Installed Body Length: 2-7/32 inches
