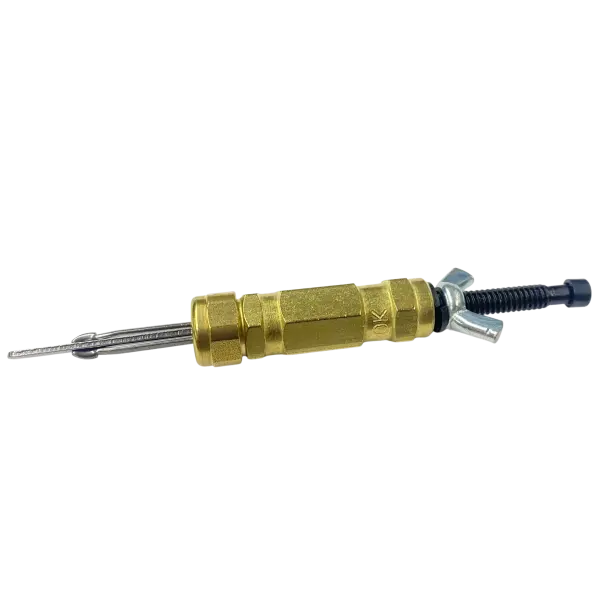

KWIK-LOK - KWNEL-type Fastener, 3/16" diameter

Part Number: KWNEL-FW-3/16

The KWIK-LOK extra long grip wing nut fastener (KWNEL) is for low production rates and high-clamping force applications. Because this fastener is manually controlled, the clamping force can range from zero to 300 lbs. The KWNEL-FW-3/16 is free wheeling and ideal for 3/16" diameter holes.
  • KWNEL-FW-3-16
Click image to enlarge
0
Quantity:

KWNEL-FW-3/16 Specifications

  • Grip Range: 1/2-1 1/2
  • Hex Diameter: 1/4 inches
  • Drill Size: #10 inches
  • Color Code: Brass
  • Installed Body Length: 3-47/64 inches
