KWIK-LOK - KHNS-type Fastener, 3/32" diameter

Part Number: KHNS-FW-3/32

The KWIK-LOK short grip hex nut fastener (KHNS) is for high production applications that require a consistent, uniform clamping force. Pneumatic driven with the Power Nut Runner KNR2000, this time-saving fastener is well suited for both metallic and composite materials. The KHNS-FW-3/32 is free wheeling and ideal for 3/32" diameter holes.

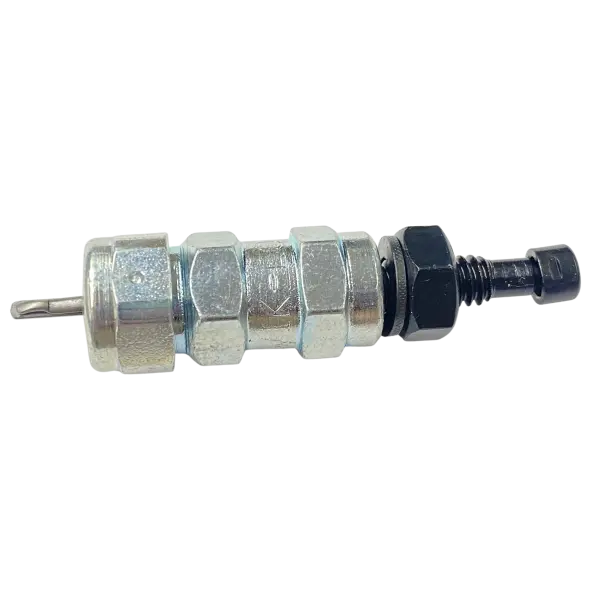

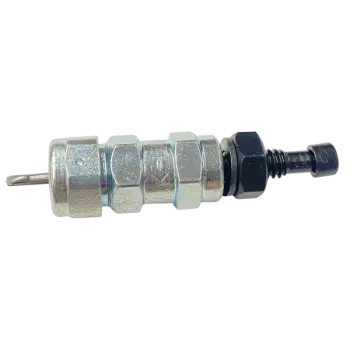

  • KHNS-FW-3-32
Click image to enlarge
0
Quantity:

KHNS-FW-3/32 Specifications

  • Grip Range: 0-5/16
  • Spindle Offset (O): 0.345
  • Drill Size: #40 inches
  • Color Code: Zinc
  • Installed Body Length: 2-7/32 inches
